XPS Insulation Board

5 Key Benefits of XPS Insulation Board

Insulation board is a multipurpose material that may be used in various construction applications, including roofs, walls, and foundations. Expanded polystyrene, extruded polystyrene, phenolic, and polyiso are some of the materials that can be used to make it. Choosing the correct insulation for your building is essential to ensuring that it operates as you expect it to.

Extruded polystyrene XPS Board Insulation in Uttar pradesh has many advantages over other types of insulation. There are various combinations to choose from, making it an excellent choice for any project.

1. It Provides a High R-Value for the Price

The R-value of the XPS insulating board is 5.0 per inch. XPS boards can be as tiny as a half-inch thick and as thick as four inches. 4'x8" and 2-by-8" sizes are typically available, making it easy to pick the right thickness and board size for the job.

2. It Is Resistant to Moisture

Building a high-performance and energy-efficient construction requires water-managed walls. Insulation goods are available to assist you in your endeavor. Architects should seek XPS materials that are resistant to water absorption and mold growth and don't absorb water. To put it another way, they'll keep their insulating characteristics for many years to come.

Building a high-performance and energy-efficient construction requires water-managed walls. Insulation goods are available to assist you in your endeavor. Architects should seek XPS materials that are resistant to water absorption and mold growth and don't absorb water. To put it another way, they'll keep their insulating characteristics for many years to come.

3. Adaptable to a Wide Range of Use Cases

Because of its flexibility, XPS insulating board is a popular choice for many applications.
Examples of these uses are an additional layer of insulation between the wood sheathing and outside siding, or beneath the slab or grade along the foundation. Aside from any PSI restrictions, XPS insulation board may be used as a substitute for many other insulation products, as long as you match the product to the application.
XPS Insulation Board Suppliers and Distributors in UP offers a variety of XPS insulating board options, rather than just one. XPS insulating boards are available for a wide range of applications.

4. Can be used for Continuous Insulation

On the outside or inside of a structure, XPS can be used for continuous insulation (Ci). Continuous insulation reduces thermal bridging across a building's design, boosting the building's overall thermal efficiency. It reduces the building's energy usage by enhancing the building envelope.

5. It Helps Achieve LEED Accreditation

It has become simpler for construction experts to acquire environmentally acceptable materials due to the increasing focus on sustainability.
The use of XPS boards in a LEED-certified project is possible. In addition to earning LEED points for Energy Efficiency and Recycled Content, Kingspan's GreenGuard XPS insulating boards also get LEED points for Environmental Performance.

With XPS, you get more options for insulation

The use of XPS insulation in a project provides architects with new possibilities that they may not have previously considered. With XPS Insulation Board Suppliers and Distributors in UP, construction professionals have a variety of alternatives for improving the efficiency with which they insulate their structures.

Our Catalog

Explore Our Products

Discover our wide range of premium materials designed for superior insulation and structural integrity.

Floor Insulation Boards

Floor Insulation Boards

Roof Insulation Boards

Roof Insulation Boards

Wall Insulation Boards

Wall Insulation Boards

What You Expect

INSUboard for Roof / Wall & Flooring

Roof Grade:

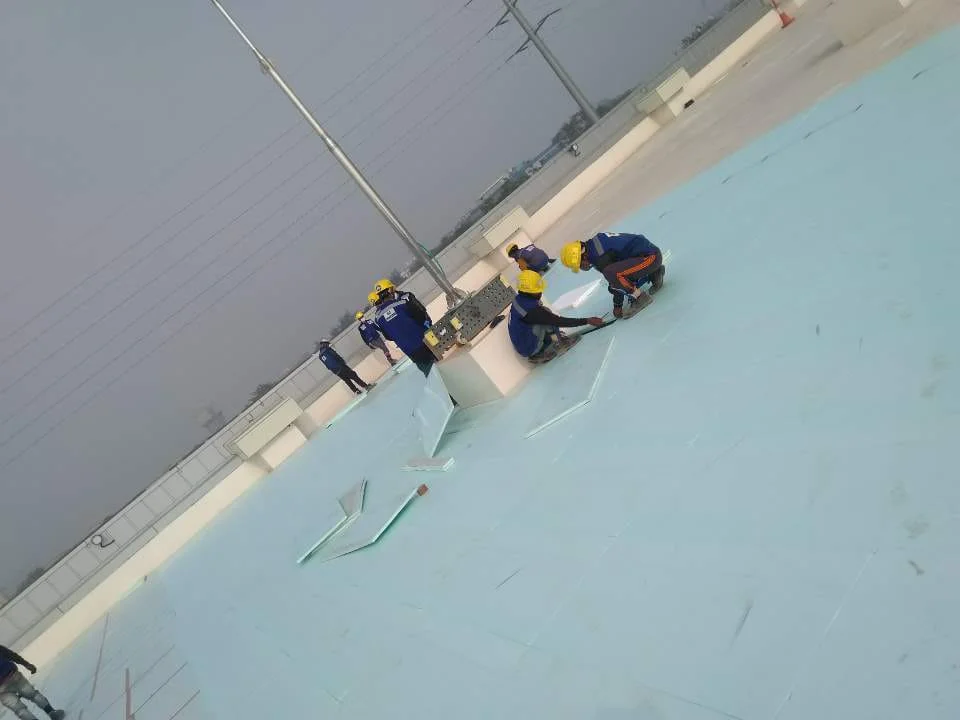

INSUboard has several unique qualities and benefits, such as low thermal conductivity, long-term durability, minimal water absorption, and light weight, that make it ideal for installing inverted roof systems. It is the best option for over deck insulation due to its higher strength.

Applications:

  • Gravel-finished non-traffic roofs.
  • Roofs providing adequate protection for cars and pedestrians (parking lots).
  • Roof gardens can be large or small.
  • Renovations for flat roofs.

Wall Grade:

INSUboard Wall Grade: The most favored and optimal option for wall insulation is INSUboard due to its light weight, relatively strong vapour diffusion resistance, higher thermal resistance, and simplicity of handling.

Applications:

  • Uses: Insulation of exterior walls.
  • Insulation of interior walls.
  • Insulation for cavity walls.
  • Exterior Insulation and Finishing System, or EIFS.

Floor Grade:

Floor Grade: INSUboard is a favored material for heavy-duty industrial and cold storage floors due to its exceptional strength and long-term endurance.

On request, special grades with increased density and compressive strength are offered to handle strong static and intense dynamic stress

Applications:

  • Factory floors in the electronics and pharmaceutical components sectors, among others.
  • Cold Storage.
Specification

All Grades

Insuboard Roof grade is a rigid board manufactured by extrusion process. The basic Raw Material is GPPS-General Purpose Polystyrene & Master batch, Fire Retardant additives & Environmentally friendly blowing agent.
Compressive Strength

@ 10% deformation

300.00

kPa

Thermal Conductivity

(k-value)

0.0289

W/m.K

Main Application
Overdeck and Underdeck Insulation
Density

34.00

Kg/m³

Insuboard Wall grade is a rigid board manufactured by extrusion process. The basic Raw Material is GPPS-General Purpose Polystyrene & Master batch, Fire Retardant additives & Environmentally friendly blowing agent.​
Compressive Strength

@ 10% deformation

180.00

kPa

Thermal Conductivity

(k-value)

0.0289

W/m.K

Main Application
Cavity Wall Insulation & EIFS (External Insulation and Finish System)
Density

34.00

Kg/m³

Insuboard Floor grade is a rigid board manufactured by extrusion process. The basic Raw Material is GPPS-General Purpose Polystyrene & Master batch, Fire Retardant additives & Environmentally friendly blowing agent.​
Compressive Strength

@ 10% deformation

500.00

kPa

Thermal Conductivity

(k-value)

0.0289

W/m.K

Main Application
Flooring
Density

33.99

Kg/m³

Additional Offerings

Other Products

APP MEMBRANE
BITUMEN PRIMER
BITUMEN ADHESIVE
BLOWN BITUMEN
WATERPROOFING COATING
FIBRE MESH
NON-WOVEN FABRIC
NO MORE NAILS ADHESIVE
SURFACE CLEANING
PVC OR WOODEN FIXTURES
JOINTS SEAL WITH ALUMINIUM OR BROWN TAPE
METAL SCREW
Advantages

Why You Choose Us?

Reputed & Exerienced

Shiv Sons has specialized in the construction and insulation industry since 1991. It has been these three elements - experience, quality of our product, and a customer base for a long time - that have brought us to a trustworthy position in the industry.

Professional Customer Guidance

According to the specific application of each project, different kinds of insulation will be suitable. The staff will be happy to help the customers identify which product would work best per their project needs and recommend and deliver the most appropriate insulation for walls ceilings floors, and other construction uses.

Quality at Affordable Prices

Our goal is to supply customers with high quality insulation products at very low prices. In fact, we make a point of always staying true to our customers without ever lowering our product standards. We make sure the items we offer are of value, reliable and durable for varied types of construction projects.

Connect With Us

Contact Details

Address

7, Shyam Vihar Market Opp. LIC Building and IOC Petrol Pump, GT Road, near Swiss Hotel, Ghaziabad, Uttar Pradesh 201001 India

Working Hours

Monday – Friday: 09:00 AM – 06:00 PM
Saturday & Sunday: Closed

Got Questions?

Frequently Asked Questions

XPS Insulation Board made of Extruded Polystyrene (XPS for short) is a type of very hard and dense insulation. Its applications include roofing, external walls, foundation insulation, as well as other types of construction works. The product enhances the ability to retain temperature and at the same time keeps moisture under control, i.e. it does not get wet easily and dries fast if it becomes wet.

Among the, we can mention its thermal insulation, moisture resistance, versatile use, continuous insulation suitability, and the potentiality to meet green-building certification requirements.

Roofs walls foundations, floors, and the area beneath the slab are among the places where XPS boards are applicable. The ideal board thickness and density will depend on the nature of the building project in question.

Absolutely. The XPS Insulation features a closed-cell structure providing excellent resistance to water absorption. That is why it is often used in situations where insulation should be exposed to moisture.

Absolutely. XPS board can be used effectively as continuous insulation on a building envelope where appropriate. It can be a great help in minimizing thermal bridging and enhancing the total energy performance of a building.

To decide on the right insulation board, take into consideration aspects like your intended application, the necessary height, the level of compressive strength you need, your thermal insulation requirements, whether your location might be humid, or what sort of climatic conditions you'll be working with during installation. Making sure you select the right product for the application will help the board perform the way it should, which is the best use you could ask for.
